| Brand Name : | Kellyway |
| Certification : | |
| Supply Ability : | 3 Piece/Pieces per week |
| Price : | Negotiate |
| Payment Terms : | L/C, T/T, Western Union |
| Delivery Time : | Within two weeks after receiving the payment. |
| MOQ : | 1 Piece |
Specification:
Spare Parts
Casing Adaptor, Casing Tube, Casing Joint, Casing Shoe, Casing Teeth
Technical Parameter of Kellyway Casing
| Diameter | Effective length L | Wall thickness | Wall thickness | Total wall thickness | Bolt Number | |||||
| D1/D2 | 1m | 2m | 3m | 4m | 5m | 6m | a1 | a2 | a3 | bolt |
| mm | Weight(kg) | mm | mm | mm | Nos | |||||
| 620/540 | 403 | 739 | 1074 | 1411 | 1747 | 2081 | 12 | 8 | 40 | 8 |
| 750/670 | 492 | 902 | 1311 | 1722 | 2131 | 2540 | 12 | 8 | 40 | 10 |
| 880/800 | 585 | 1069 | 1552 | 2036 | 2520 | 3005 | 12 | 8 | 40 | 10 |
| 900/820 | 669 | 1221 | 1773 | 2328 | 2877 | 3429 | 12 | 8 | 40 | 12 |
| 1000/920 | 844 | 1580 | 2316 | 3052 | 3787 | 4522 | 16 | 8 | 40 | 12 |
| 1180/1100 | 872 | 1620 | 2370 | 3120 | 3870 | 4620 | 16 | 8 | 40 | 12 |
| 1200/1120 | 933 | 1746 | 2558 | 3372 | 4184 | 4996 | 16 | 8 | 40 | 12 |
| 1300/1220 | 1433 | 2628 | 3817 | 5009 | 6210 | 7390 | 20 | 10 | 50 | 12 |
| 1500/1400 | 1730 | 3166 | 4602 | 6038 | 7474 | 8910 | 20 | 10 | 50 | 12 |
| 1800/1700 | 2450 | 4280 | 6110 | 7940 | 9770 | 11600 | 20 | 15 | 60 | 12 |
| 2000/1880 | 2700 | 4720 | 6740 | 8760 | 10780 | 12800 | 20 | 15 | 60 | 12 |
| 2500/2380 | 2960 | 5240 | 7520 | 9800 | 12080 | 14360 | 20 | 15 | 60 | 16 |

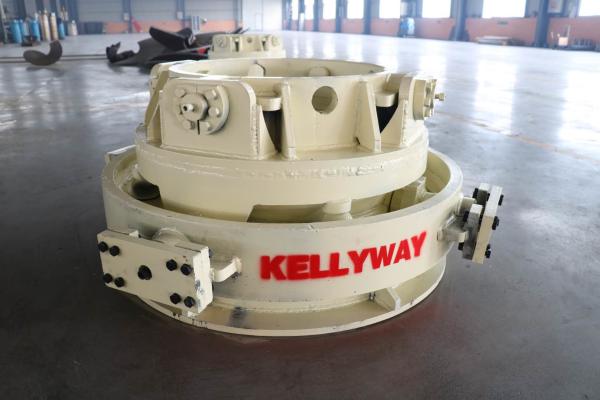

Technical Parameter of Kellyway Casing Driver
Technical Parameter of Kellyway Casing Joint
| Φ(mm) | Bolt Number | Weight(kg) |
| 620/540 | 8 | 188 |
| 750/670 | 10 | 221 |
| 800/720 | 10 | 255 |
| 880/800 | 10 | 315 |
| 900/820 | 12 | 345 |
| 1000/920 | 12 | 375 |
| 1180/1100 | 12 | 520 |
| 1200/1120 | 12 | 1040 |
| 1300/1220 | 12 | 1380 |
| 1500/1400 | 12 | 1660 |
| 1800/1700 | 12 | 1800 |
| 2000/1880 | 16 | 2000 |
| 2500/2380 | 70 | 848 |
Technical Parameter of Kellyway Casing Shoe
Φ(mm) | Bolt Number | Weight(kg) |
620/540 | 8 | 260 |
750/670 | 8 | 300 |
800/720 | 10 | 360 |
880/800 | 12 | 410 |
900/820 | 14 | 470 |
1000/920 | 14 | 490 |
1180/1100 | 16 | 560 |
1200/1120 | 18 | 760 |
1300/1220 | 22 | 920 |
1500/1400 | 24 | 1200 |
1800/1700 | 26 | 1350 |
2000/1880 | 30 | 1500 |
2500/2380 | 70 | 848 |
Package with aluminium film or pallet.
Hunan Kellyway Machinery Co., Ltd was founded by the main team which is with up to ten years’ experience on foundation works and piling machinery. Kellyway is committed to manufacture and supply most reliable and highest cost-performance products for piling works including Kelly Bars, Drilling Tools and Drilling teeth. Kellyway is working on provide the one-stop piling solutions for our domestic and global customers and we are dedicated to be your best partner for your piling works from China.
Q1. How long have you been in this business?
Over 10 years experience.
Q2. Do you accept sample order?
Yes sure, please contact us for details.
Q3. How about your after-sales service?
We offer promote technology support for all problems and questions.
Besides, we accept goods return or replace for quality problem.
Q4. How does your company control the quality?
Quality first. In order to guarantee high quality for our products.
Kellyway makes a serious inspection for all products and raw materials in strict procedure.
Our service
1. Prompt delivery
2. Best after-sale service
3. The products could be produce according to customer's
requirements
4. Inquiries are typically replyed within 24 hours
|
|
