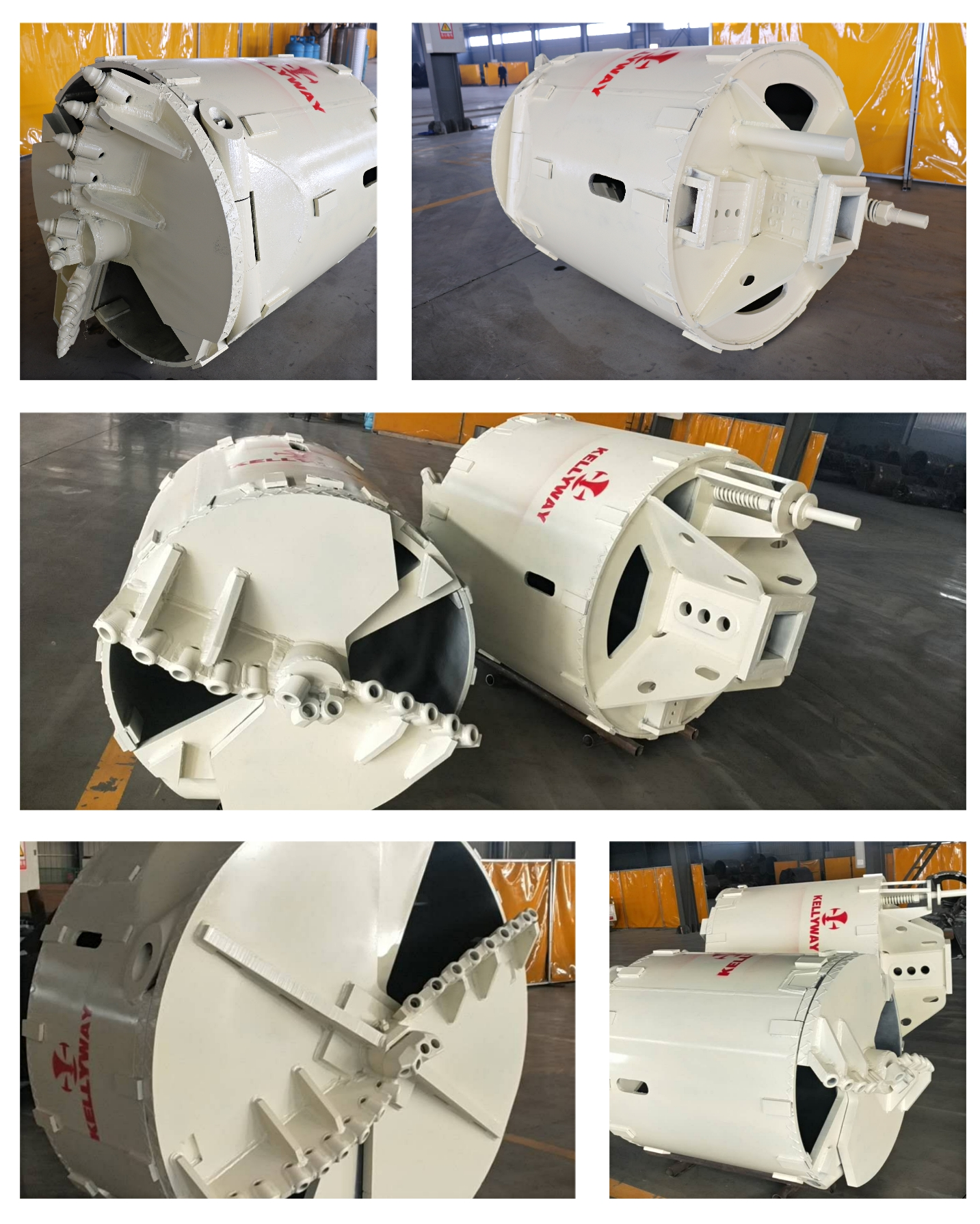

Piling Solution Double Cutting Rock Bucket Of Rock Foundation Piling With Kelly Bars Drilling Machine
| Diameter D(mm) | Height H(mm) | Bucket Thickness T(mm) | Base/Cutting Plate Thickness T1/T2(mm) | Bullet Teeth number | RP4 Teeth number | Weight (kgs) |
| φ600 | 1200 | 20 | 40/40 | 6 | 687 | |
| φ800 | 1200 | 20 | 40/50 | 9 | 963 | |
| φ1200 | 1200 | 20 | 40/50 | 13 | 1675 | |
| φ1500 | 1200 | 20 | 40/50 | 16 | 2310 | |
| φ1800 | 1000 | 20 | 50/50 | 17 | 4 | 3332 |
| φ2000 | 800 | 20 | 50/50 | 18 | 4 | 3868 |
| φ2500 | 800 | 25 | 50/50 | 24 | 4 | 5791 |
1, Conventionally, the buckets have cutting blades on their bottoms and are provided with bottom openings to permit relatively small rocks and objects to be received into the bucket.
2, Upon encountering a relatively large rock or other object, a common practice has been to remove the drilling bucket from the bore being drilled and to lower a rock bucket particularly designed to be repeatedly dropped upon the rock or object.
3, After the rock has been broken into pieces by repeated impacts of the chopping bucket or rock bucket, the chopping bucket is removed from the bore being drilled and is replaced with the drilling bucket which is capable of receiving the smaller pieces through its bottom openings.
4, The angle of attack of drilling bits are variable according to the type of soil/rock to generate maximum efficiency during drilling.
5,Each bullet teeth is positioned at a specific angle on the bottom plate to make sure there is minimum wearing out and breakage of the bullet teeth or holders.
Our Advantages
1, Kellyway provides high efficiency solution for your drilling require.
2, The rugged hard-faced combo bucket features a patented scissor latch. Located in the vent, the doublefinger latch system stays protected from the drilling spoils, thus allowing the scissor to function without any interference.
3, The double open bottom design allows the operator to open the bottom plate either manually or automatically. Choose from dirt, rock or clean-out drill bottoms.
4, Kellyway manufactured rock drilling buckets or augers have all the bits at the correct angels, which have been found out after a series of drilling tests performed in hard rock to faciliate rotation during drilling.
5, Kellyway provides serious and responsible after-sales service when/if required by the customers for any issues.
Our service
1, Prompt delivery; Best after-sale service;
2,The products could be produce according to customer's requirements;
3, Inquiries are typically replyed within 24 hours
4,100% inspection before shipment.
5, Wrapped with plastic film.
6, Fixed with iron support, wheel or pallet when necessary.
7,Packed with plastic cases and wooden cases for drilling bits,
clay teeth or other small accessories.
8, As clients' requirements.
|
|
